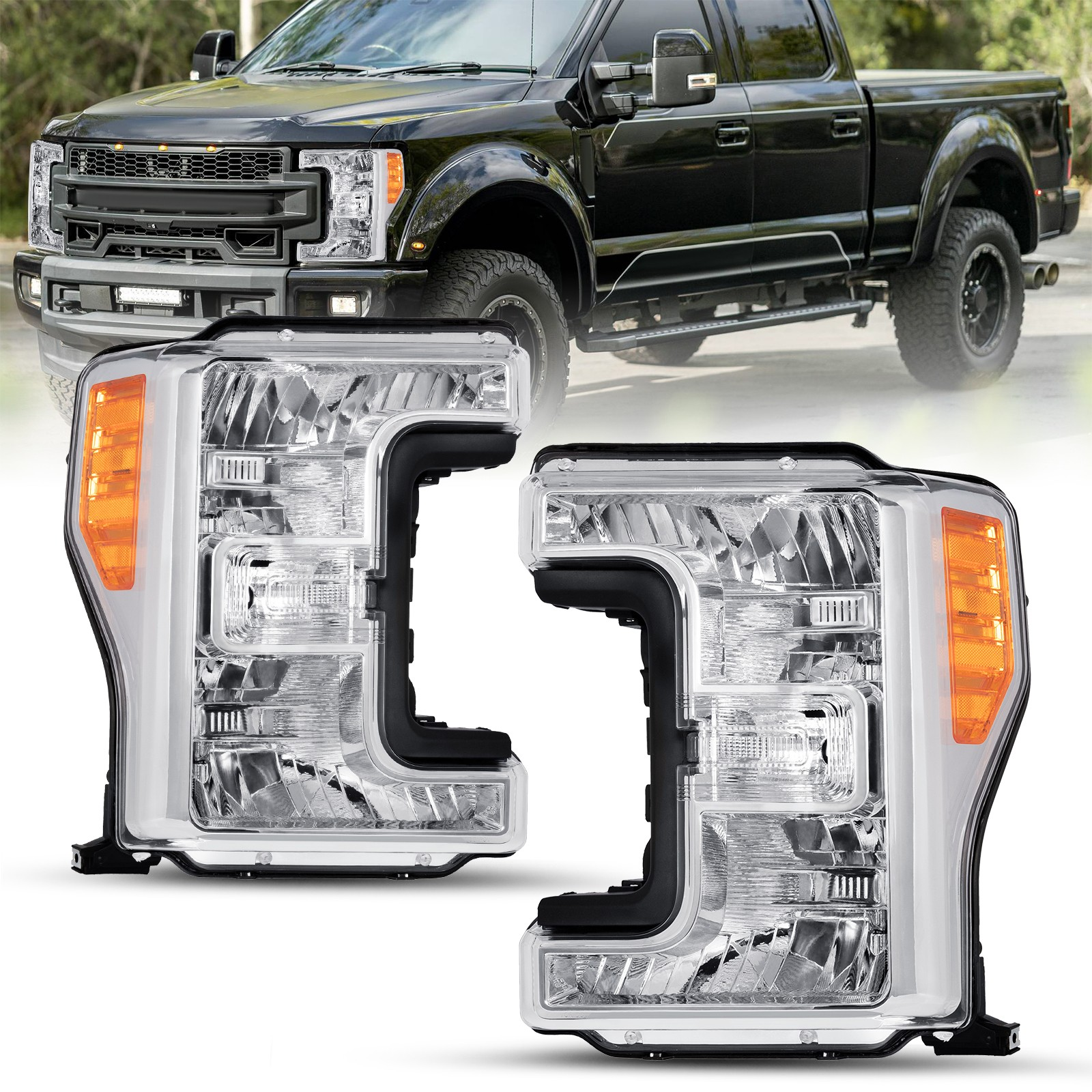

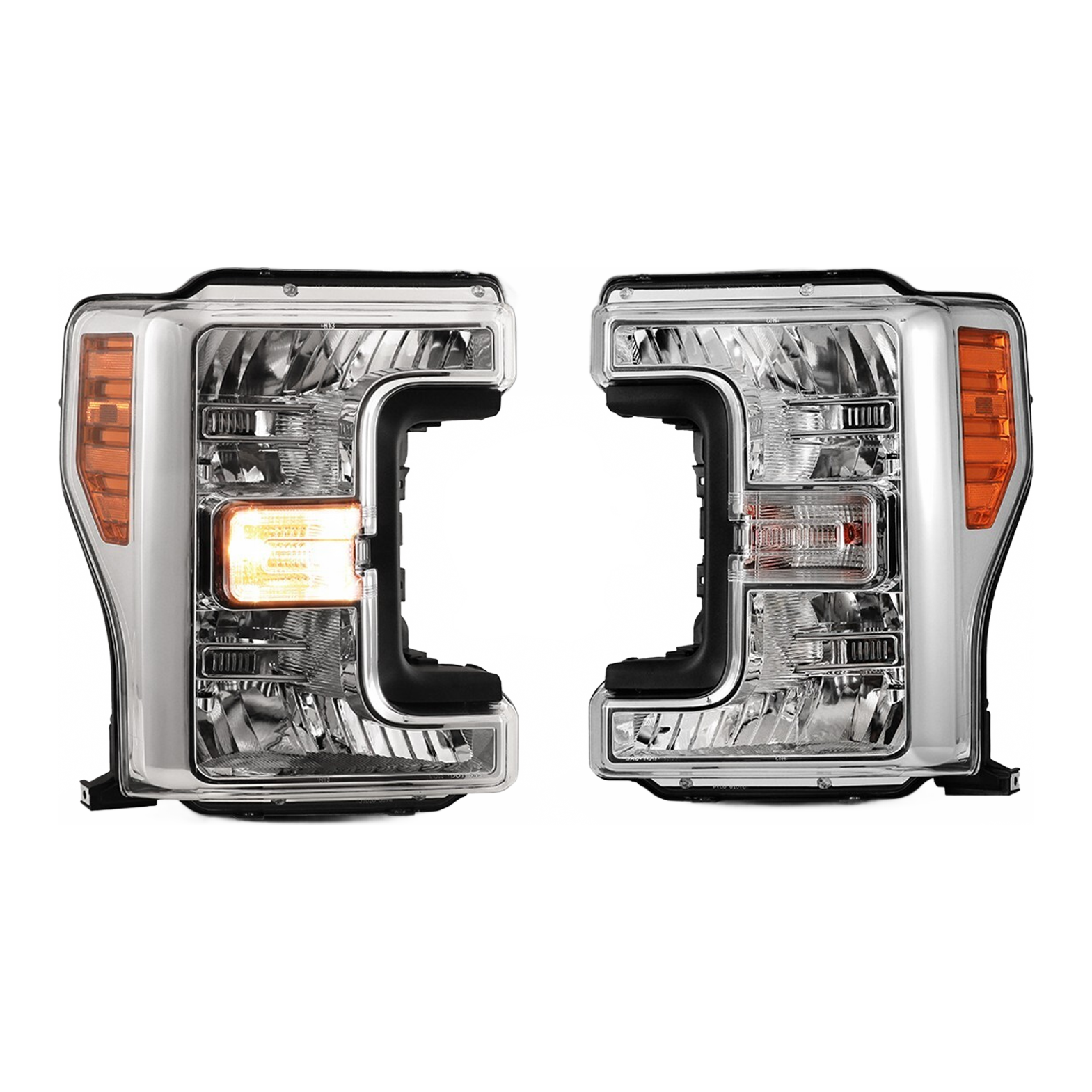

Top Gear Motors Chrome Halogen Headlight Pair Left and Right for 2017–2019 Ford F-250 F-350 F-450 F-550 Super Duty Clear Lens

Description

This Top Gear Motors chrome headlight pair is built for 2017 through 2019 Ford F-250, F-350, F-450, and F-550 Super Duty trucks that were originally equipped with halogen headlamps. Each assembly uses a chrome housing with a clear PMMA lens and provides high beam, low beam, turn-signal, and reflector functions in a sealed headlight layout for the front driver and passenger corners. The design is intended as a direct replacement for factory-style halogen lamp applications and is not intended for trucks that left the assembly line with factory LED headlight assemblies. The lamp assembly is specified with a factory headlight style appearance, 12 V halogen lighting technology, and a cold white light color. Top Gear Motors supplies the units as a matched left-and-right set so both sides present the same finish and lamp layout across the Super Duty models covered here. The housings support plug-and-play connection with the truck’s existing lamp-side wiring when the correct halogen bulbs are installed to match the H13, W5W, and 7444NA types listed for this unit.

Specifications

• Type: Headlight Assembly
• Position: Left and Right (Pair)
• Finish: Chrome Housing, Clear Lens
• Bulb Type: Halogen — for H13 (9008) high/low beam, W5W position, and 7444NA turn-signal applications; bulbs not included
• Mount Location: Front, Driver and Passenger Side
• Lighting Technology: Halogen
• Assembly Type: Sealed
• Function: High Beam, Low Beam, Turn Signal, Reflector
• Voltage: 12 V
• Material: PMMA Lens
• Headlight Style: Factory
• Light Color: Cold White
• Fitment Note: For halogen headlight models only; not for factory LED headlight models
• Certifications: DOT-Certified, SAE-Certified
• OE Numbers (reference): 2017 applications — Left HC3Z13008D, HC3Z13008DCP; Right HC3Z13008A, HC3Z13008ACP. 2018–2019 applications — Left JC3Z13008K; Right JC3Z13008J
• UPC: 723509465353
• Warranty: 1 Year Manufacturer Warranty

Compatibility

• Ford F-250 Super Duty 2017–2019
• Ford F-350 Super Duty 2017–2019
• Ford F-450 Super Duty 2017–2019
• Ford F-550 Super Duty 2017–2019

Package Contents

• Pair of headlight assemblies (driver and passenger side)
• Bulbs are not included.
• Wiring harness is not included.

Installation Notes

Installation follows the same general service steps used for factory-style sealed headlamp units on these Super Duty trucks. The assemblies are built for halogen-equipped trucks rather than models produced with factory LED headlight assemblies. Install the correct halogen bulbs per the H13, W5W, and 7444NA requirements before securing the housings. Electrical connection uses the vehicle’s existing wiring at the lamp connectors; a separate harness is not supplied in the box.
